  • Dahua 4MP WDR HDCVI IR Dome Camera 2.8mm lens

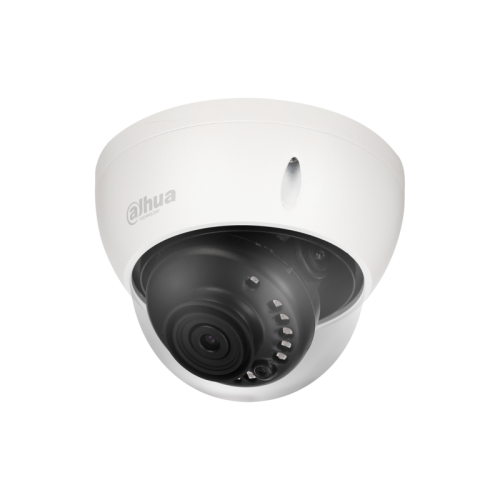

Dahua HAC-HDBW2401E 4MP WDR HDCVI IR Dome Camera


Picture 1 of 1

2 Year manufacturers warranty applies to these cameras

This is a coaxial style camera and works on suitable Dahua and Secureview CVR's only. !!

  • 120dB True WDR, 3DNR
  • Max 4MP real-time
  • HD and SD dual-output
  • 2.8mm fixed lens (3.6mm, 6mm optional)
  • Max. IR length 30m, Smart IR
  • IP67, IK10, DC12V

    • Specifications

    Camera
    Image Sensor 1/3" CMOS
    Effective Pixels 2688(H)×1520(V), 4.1MP
    Scanning System Progressive
    Electronic Shutter Speed PAL: 1/4s~1/100,000s
    NTSC: 1/3s~1/100,000s
    Minimum Illumination 0.01Lux/F1.5, 30IRE, 0Lux IR on
    S/N Ratio More than 65dB
    IR Distance Up to 30m (98 feet)
    IR On/Off Control Auto / Manual
    IR LEDs 12
    Lens
    Lens Type Fixed lens / Fixed iris
    Mount Type Board-in
    Focal Length 2.8mm
    Max Aperture F1.5
    Angle of View H: 99.7°
    Focus Control N/A
    Close Focus Distance 1500mm (900mm, 1700mm)
    Pan / Tilt / Rotation
    Pan/Tilt/Rotation Pan: 0° ~ 355°
    Tilt: 0° ~ 65°
    Rotation: 0° ~ 355°
    Video
    Resolution 4MP (2560×1440)
    Frame Rate 25fps@4MP, 25/30fps@1080P, 25/30fps@720P
    Video Output 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output
    Day/Night Auto (ICR) / Manual
    OSD Menu Multi-language
    BLC Mode BLC / HLC / WDR
    WDR 120dB
    Gain Control AGC
    Noise Reduction 2D/3D
    White Balance Auto / Manual
    Smart IR Auto / Manual
    DORI Distance
    DORI Definition Distance
    Detect 25px/m (8px/ft) 2.8mm:63m(208ft)
    3.6mm: 80m(262ft)
    6mm:120m(394ft)
    Observe 63px/m (19px/ft) 2.8mm:25m(83ft)
    3.6mm: 32m(105ft)
    6mm:48m(157ft)
    Recognize 125px/m (38px/ft) 2.8mm:13m(42ft)
    3.6mm: 16m(52ft)
    6mm: 24m(79ft)
    Identify 250px/m (76px/ft) 2.8mm:6m(21ft)
    3.6mm: 8m(26ft)
    6mm: 12m(39ft)
    Certifications
    Certifications CE (EN55032, EN55024, EN50130-4)
    FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
    UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
    Interface
    Audio Interface N/A
    Eelectrical
    Power Supply 12V DC ±25%
    Power Consumption Max 4.4W (12V DC, IR on)
    Environmental
    Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
    * Start up should be done at above -30°C (-22°F)
    Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
    Ingress Protection & Vandal Resistance IP67 & IK10
    Construction
    Casing Aluminium
    Dimensions Φ109.9mm×81.0mm (Φ4.33"×3.19")
    Net Weight 0.33kg (0.73lb)
    Gross Weight 0.45kg (0.99lb)


    • Write a review

    Please login or register to review

    Dahua 4MP WDR HDCVI IR Dome Camera 2.8mm lens

    • Brand: Dahua
    • Product Code: DH-HAC-HDBW2401E
    • Availability: In Stock

    • $89.00


    This product has a minimum quantity of 4

    0 reviews / Write a review
