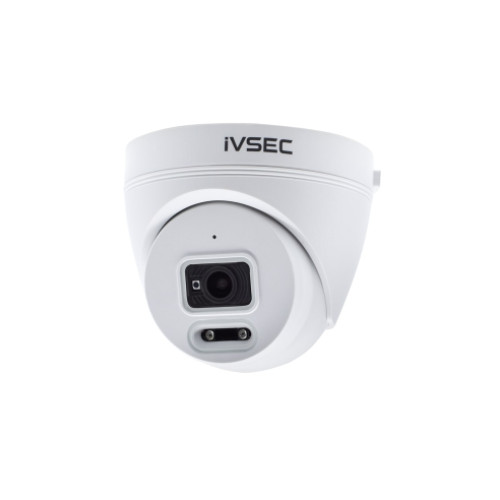

IVSEC NC000XA Dome IP Camera 4MP
PoE 2.8mm Lens, IR, SD card slot
Cost effective IP camera with SD card slot and Microphone. Scan the QR code on the free IVSEC X app to setup. This camera has Smart Motion Detection that will pick up humans and vehicles to reduce false alarms.
The IVSEC NC000XA IP security camera offers a 4 Megapixel resolution combined with a 2.8 mm lens delivering great image clarity.
The built-in infrared illumination enables night vision at up to 20 metres.
When used together with the IVSEC X series recorders, this camera from AV Mart Australia will be automatically detected with Plug & Play.
The IVSEC NC000XA features an IP66 water resistant dome which means this video surveillance camera can be used both indoors and outdoors.
The NC000XA features H.265 video compression technology.
Main features: Dome IP Camera, 4MP, 2.8mm lens, IP66, IR 20m IR, 1 year warranty.
Specifications
| Camera Type |
Turret |
| Image Sensor |
1/2.7″ Progressive CMOS |
| Maximum Video Resolution (Megapixels) |
4 |
| Maximum Video Resolution |
2560 x 1440 |
| Lens |
2.8 mm (H.FOV: 88°) |
| Lens Type |
Fixed |
| Maximum Night IR Distance (M) |
20 |
| Video Compression |
H.265, H.264, MJPEG |
| ONVIF depends on firmware version |
ONVIF( Profile S/G/T) 21.12 or greater, Http API |
| IP Rating |
IP66 |
| Operating Environment |
-10ºC to 55ºC (14ºF-131ºF) Humidity: 20%-80% RH |
| Dimensions |
100×100 mm |
| Weight (Net) |
0.22 |
| Accessories |
IV2422X, IV2477X, IV2433X, IV2444X, IV2455X, IV2457X |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V |
| Power Consumption |
<4W |
| Connectors |
RJ-45 , DC Power Input |
| Outdoor Use |
Yes |
| IP Rating |
IP66 |
| Vandal Resistant |
No |
| Frame Rate at Resolution |
25 |
| Where to buy IVSEC |
AV Mart Australia |
| Image Enhancement |
Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Mirror, Angle Flip, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction |
| Edge Recording microSD/SDHC Card |
Micro SD/SDHC Card |
| Multiple Streams (encode format) |
2 Streams |
| Audio Streaming |
Yes (microphone included) |
| Protocols |
TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SNMP, P2P (QR code) |
| Intelligent Video (IVS) |
Smart Motion Detection, Perimeter Intrusion Detection, Line Crossing Detection, Sound Detection |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code) |
| Power Over Ethernet |
Yes |
| Ethernet |
Ethernet (10/100 Base-T) |
| In The Box |
Printed quick user guide, installation template, mounting screws and plugs |
| Warranty |
12 Months Parts Warranty |
|
