NR308XC-2TB NVR
60% more processing power than NR308XA. Included IVS to match cameras with facial detection, Human and car detection. Now with Alarm relays
IVSEC NR308XC 8 Channel NVR
8MP, 8 PoE Ports 1 Bays H265 4K HDMI IVS

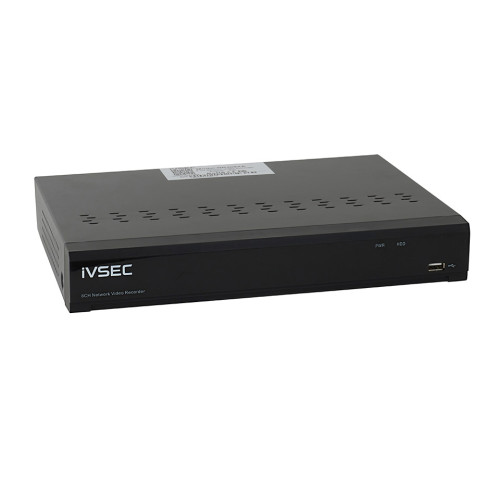

The IVSEC NR308XC is a network video recorder capable of supporting up to 8 IP security cameras and of recording at up to 12 megapixel resolution.
It’s easy to install and has an intuitive user interface. When used with IVSEC X series cameras, installation is plug and play.
This NVR is fully ONVIF compatible and can also support other brands of IP cameras.
Thanks to the 8 built in POE+ ports, you can save on installation costs. They supply both data and power directly to the cameras via a standard CAT5 or CAT6 network cable.
Remotely view footage from your security cameras (live or playback) over the internet via your PC, mobile, or tablet. Easily setup the app by simply scanning the QR code which is on your IVSEC network video recorder.
The NR308XC NVR can have up to 14TB storage (2TB HDD included). We recommend the use of surveillance grade HDD.
The NR308XC features H.265 video compression, the most up to date video compression technology. This will save storage space and network bandwidth.
This NR308XC comes with a free VMS software which allows you to access the NVR from compatible Windows or Mac OS computers, either locally or via the cloud (simply scan the QR code).
| Maximum Channels |
8 |
| Maximum Video Resolution (Megapixels) |
12MP |
| Examples of Channels at a resolution with FPS |
128 Mbps |
| Video Compression |
H.264, H.265 |
| Video Output Resolution |
4K, HD-1080p, HD-720p, 1.3 MP, D1, VGA |
| Image Display |
1, 4, 6, 8, 9 |
| Search Method |
Continuous, Scheduling, Event Triggered ( PIR, IVS, Motion, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Cross Counting) |
| Total Storage Potential (TB) |
16 |
| HDD Bays, Size |
Bays x 1, Up to 16TB per HDD |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Protocols |
TCP, HTTP, HTTPS, DHCP, DDNS, NTP, SMTP, PPPOE, RTSP, UPnP, ONVIF, P2P, QR Code |
| Language |
English, French, Dutch, German, Italian, Polish, Portuguese, Spanish, Thai, Turkish, Hungarian, Simplified Chinese, Etc. |
| Audio Streaming |
Out |
| Power Over Ethernet Switch Ports |
8 up to 802.3at(30w) |
| Power Over Ethernet |
Yes |
| Power Supply |
DC48V/2A |
| Power Consumption |
8W （Without HDD） |
| Connectors |

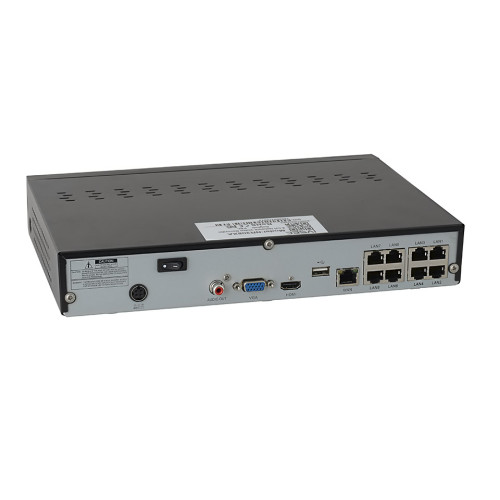

HDD: 3.5″ SATA HDD Slot x 1, USB2 Female x 2, USB3 Female x 1, Gigabit Ethernet: RJ-45 Port x 1 and 8 x PoE+ ports, HDMI and VGA, Alarm ports 8 in and 1 out, Audio out, Power Jack input, On off switch |
| Operating Environment |
5ºC to 45ºC (41ºF-113ºF) Humidity: 20%-80% RH |
| In The Box |
Printed quick installation guide, Mouse, Remote control, HDD screws, Power supply. |
| Warranty |
24 months parts |
| Dimensions |
300 x 227 x 53 mm |
| Weight (kg) |
1 kg |
.
|
